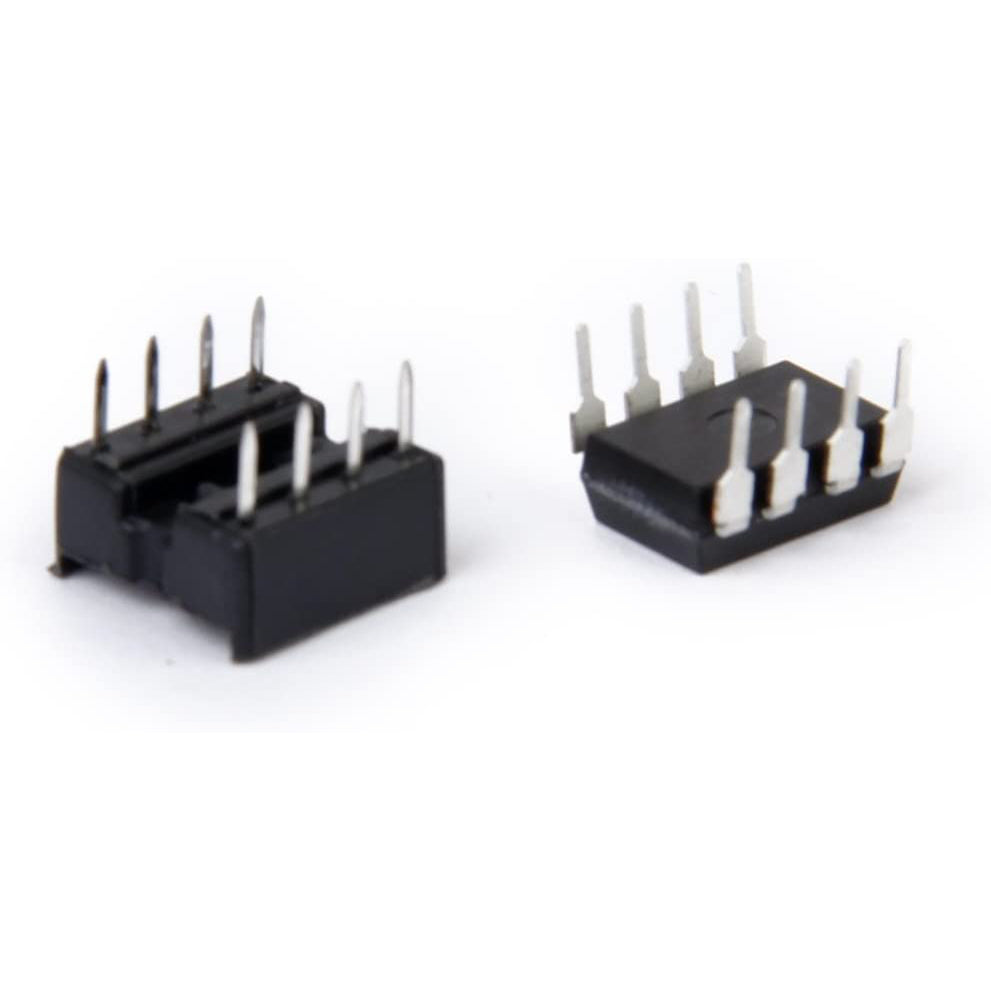

5pairs 6N137 DIP8 HighSpeed Optoisolator Photocoupler Optocoupler W/Chip Socket

$19.99
SKU 00086

The EL817 photocoupler contains an infrared emitting diode optically coupled to a phototransistor. This EL817 optocoupler is packaged in a 4-pin DIP package.

Description:

- High speed 10Mbit/s
- High isolation voltage between input and output (Viso=5000 V rms)
- Package: DIP8
- Pb free and RoHS compliant
- Optocoupler Size (L x W x H): Approx. 0.35 x 0.24 x 0.12inch / 9 x 6 x 3mm (pins not included)
- IC Socket Size (L x W x H): Approx. 0.39 x 0.39 x 0.2inch / 10 x 10 x 5mm (pins not included)

Applications:

- Computer terminals
- System appliances, measuring instruments
- Registers, copiers, automatic vending machines
- Cassette type recorder
- Electric home appliances, such as fan heaters, etc
- Signal transmission between circuits of different potentials and impedances

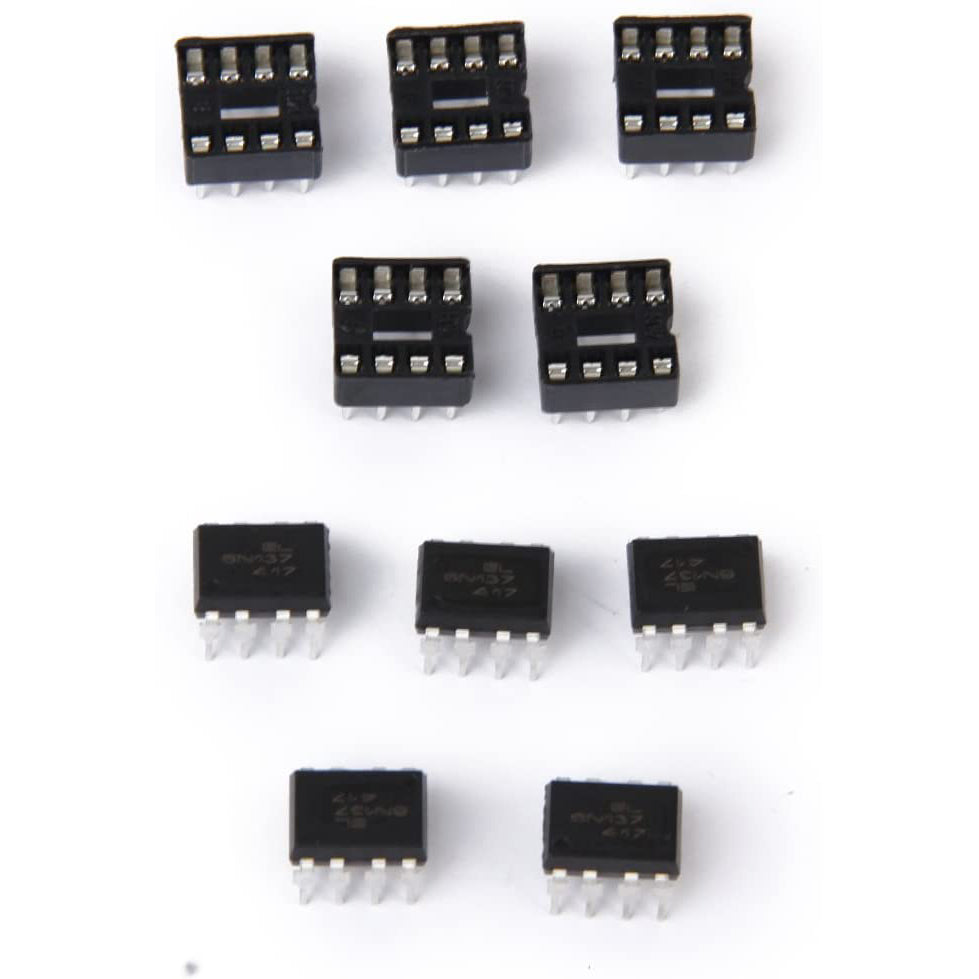

Package Includes:

5 x 6N137 Optocoupler
5 x Chip Socket


Your satisfaction is our priority. So we would deliver the highest quality products and services to meet your satisfaction.


  • The EL817 photocoupler contains an infrared emitting diode optically coupled to a phototransistor. This EL817 optocoupler is packaged in a 4-pin DIP package.
  • High speed 10Mbit/s
  • High isolation voltage between input and output (Viso=5000 V rms)
  • Package: DIP8
  • Pb free and RoHS compliant
