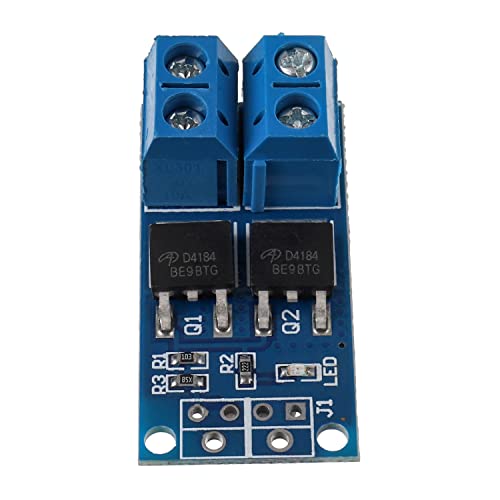

EPLZON MOS Switch Drive Module DC 5V-36V 15A(Max 30A) 400W FET Trigger Switch Board Driving Module 0-20KHz PWM Adjustment Electronic Switch Control Board DC Motor Speed Controller(Pack of 10 Pcs)
Brand: EPLZON
Features:
- ✅Working voltage: DC 5V-36V, continuous current: 15A, power: 400W, strengthen heat dissipation conditions, the maximum current can reach 30A

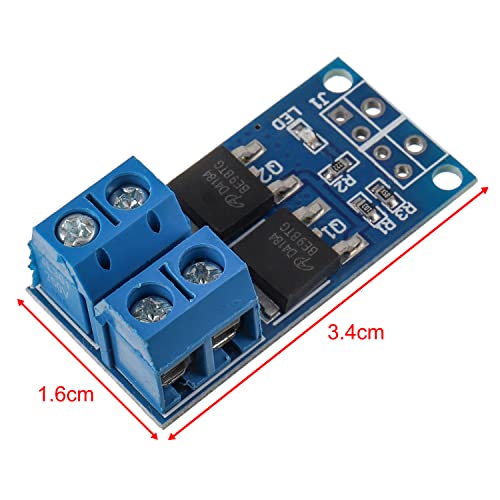

- ✅Working temperature: -40-85℃; size: 1.34x0.7x0.5inch/3.4 x 1.7 x1.2cm (length * width * height)
- ✅Using imported dual MOS parallel active output, lower internal resistance, higher current, strong power, continuous current 15A at normal temperature, power: 400W, meets most equipment use, and easily realizes the control of high-power equipment

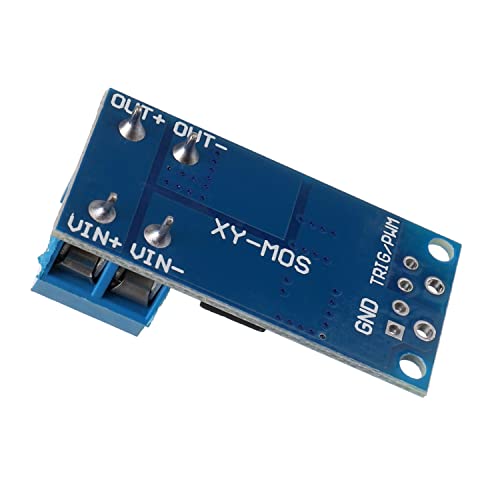

- ✅Trigger signal source: digital high and low level (DC3.3V-20V), can be connected to MCU IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0-20KHZ support
- ✅Application: Output can control high-power equipment, such as motors, LED lights, bulbs, micro pumps, DC motors, solenoid valves; PWM can be input to control motor speed, lamp brightness, etc.
Part Number: EP-SWITCH-15A

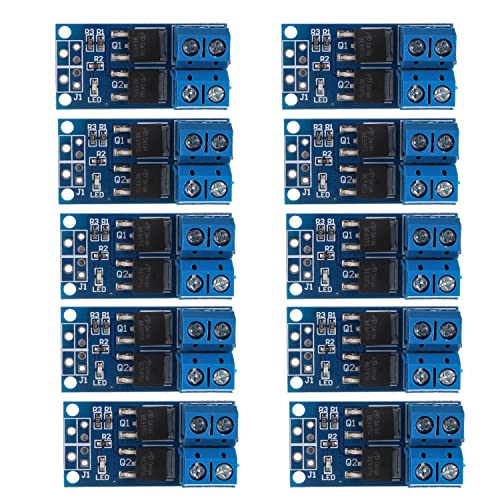

Details: EPLZON DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOSFET Transistor Trigger Switch Drive Module Using imported high-power dual MOS transistors in parallel for active output, lower resistance, larger current, and strong power technical parameter: Output voltage: DC 5V-36V Output current: 15A (continuous current at room temperature Enhanced heat dissipation, the maximum current can reach 30A) Output power: 400W Working temperature: -40-85℃ Size: 1.34x0.7x0.5inch/3.4 x 1.7 x1.2cm (length * width * height) Trigger source: digital level (DC3.3V-20V), can be connected to the IO port of the single-chip microcomputer, PLC interface, DC power supply, etc. The module can be connected to the PWM signal, which can perfectly support the frequency of 0-20KHZ. Package Included: 10Pcs NOYITO 400W 15A dual MOS transistor driver module
EAN: 0762917456492
Package Dimensions: 4.6 x 3.9 x 0.7 inches
