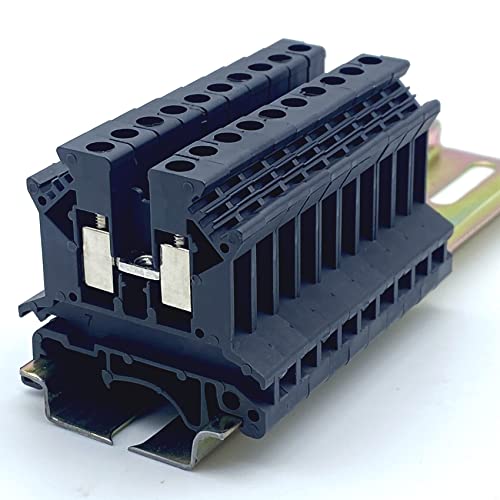

Erayco UK2.5N-B DIN Rail Terminal Block, Screw Clamp, 600V 20A 24-12AWG, Pack of 100 (Black)

by Erayco
$28.99
SKU B09M8VNRQT

Brand: Erayco

Color: Black

Features:

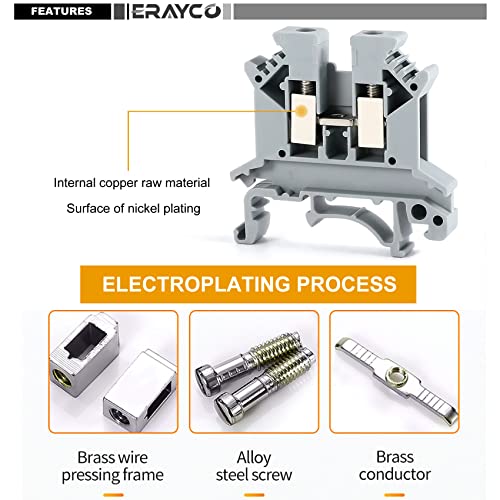

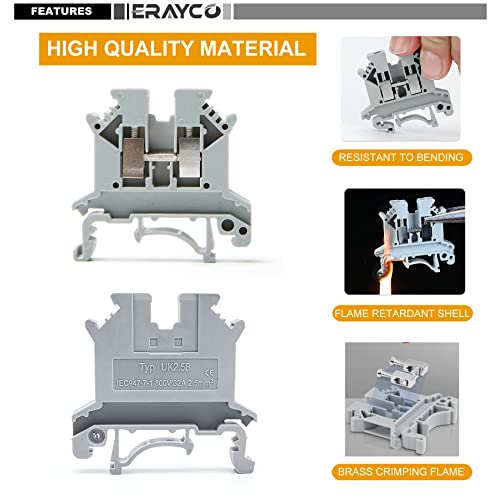

  • Material: Nylon PA66 Housing + Alloy Copper Bodies + Nickel-plated Screws.
  • Rated voltage: 600V, IEC 800V. Rated current: 20A, IEC 32A.
  • Conductor cross-section, solid(AWG/mm²): 24-12, IEC 0.2mm²-4mm². Conductor cross-section, flexible(AWG/mm²): 20-12, IEC 0.2mm²-2.5mm²

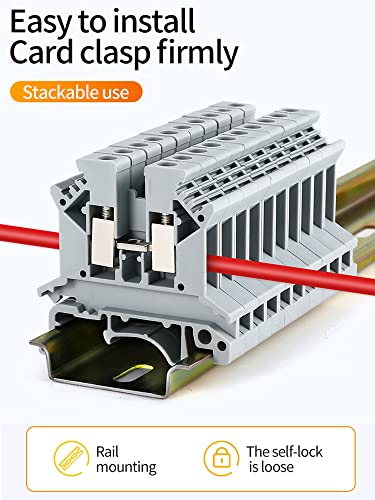

  • Universal Mounting Foot.
  • Large wire funnel entry.

Part Number: ERC-039

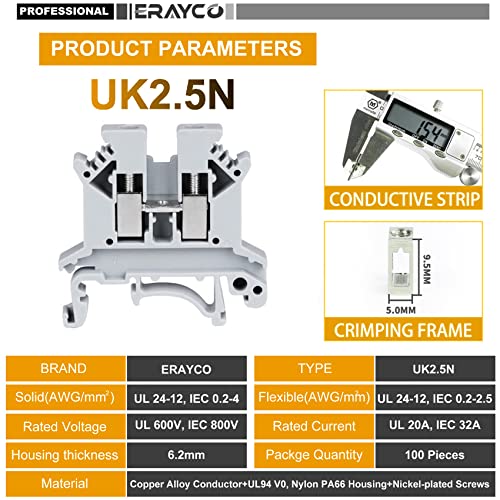

Details: Erayco UK2.5N-GR DIN Rail Terminal Block Specification: Brand: Erayco Type: UK2.5N Material: Nylon PA66 Housing + Alloy Copper Bodies + Nickel-plated Screws Rated voltage: 600V, IEC 800V. Rated current: 20A, IEC 32A. Conductor cross-section, solid(AWG/mm²): 24-12, IEC 0.2mm²-4mm² Conductor cross-section, flexible(AWG/mm²): 24-12, IEC 0.2mm²-2.5mm² Universal Mounting Foot Large wire funnel entry Housing thickness: 6.2mm Installation Method: DIN Rail Mounted Package Quantity: 100 Pieces Erayco UK2.5N is a DIN rail terminal block at 20 Amps at 600 Volts, 20 to 12 AWG, 6.2 mm thick. The body is made from the PA66 nylon housing and alloy copper bodies. It has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. Frequently bought togetherErayco 20 Pieces 35mm Wide DIN Rail Slotted Aluminum: https://www.amazon.com/dp/B07HMW318D Erayco 3 Pieces 35mm Wide DIN Rail Slotted Aluminum: https://www.amazon.com/dp/B07PQ8RR6M Erayco DIN Rail End Cap Protector: https://www.amazon.com/dp/B09P54KZFT Erayco 10Pcs Press-Fit Jumper: https://www.amazon.com/dp/B07HMY1B4P Erayco 10pcs Fixed Bridge:Jumpers: https://www.amazon.com/dp/B07M64X1ND Erayco 20 Pcs Mark Bar Marking Tags: https://www.amazon.com/dp/B09NTCLYGY Erayco D-UK2.5 DIN Rail Mounted Terminal Block End Cover (Pack of 20): https://www.amazon.com/dp/B07G14FJYN Erayco E/UK DIN Rail Terminal Blocks End Stopper Bracket (Pack of 20): https://www.amazon.com/dp/B09N1J4RN4 Erayco UK2.5N DIN Rail Terminal Block (Pack of 100): https://www.amazon.com/dp/B07G15JQGL Erayco USLKG2.5N Ground Circuit Connection Terminal Block: https://www.amazon.com/dp/B07G47JZ52

Package Dimensions: 8.9 x 5.5 x 1.9 inches
