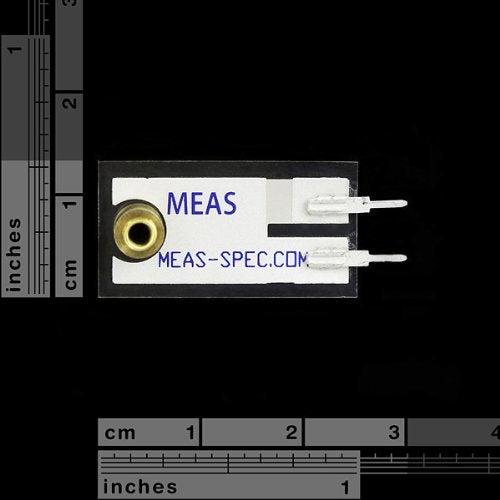

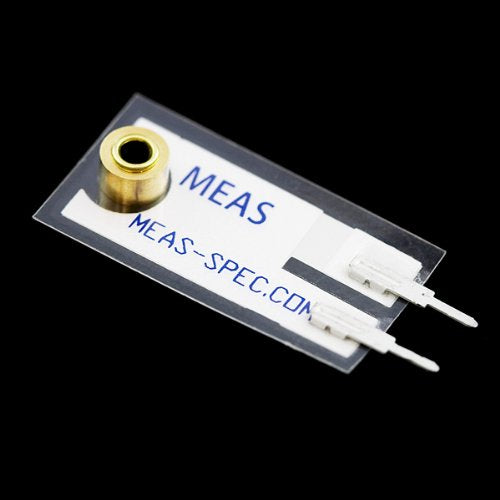

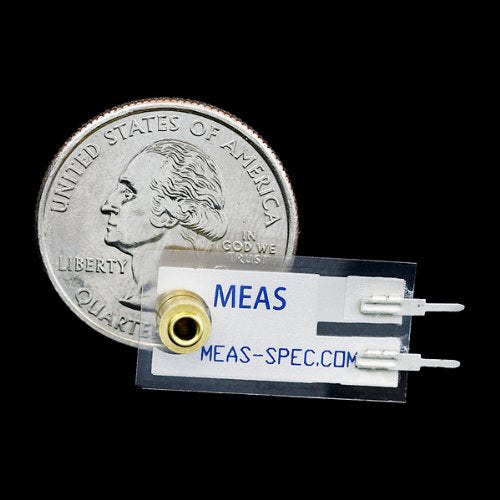

Piezo Vibration Sensor - Large with Mass

Features:

• This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements
• A small AC and large voltage (up to +/-90V) is created when the film moves back and forth
• Can also be used for impact sensing or a flexible switch
• Check description below for links to instructions and datasheets!
• Skill Level: Component or Part

Details: Description: This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch. Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.   Features: Flexible PVDF Piezo Polymer Film Wide dynamic range Laminated for higher voltage output 0.1" breadboard friendly leads   Datasheets: Datasheet (LDT0-028K) - http://www.electronics123.net/amazon/datasheet/LDT_Series.pdf Hookup Guide - https://learn.sparkfun.com/tutorials/piezo-vibration-sensor-hookup-guide Technical Manual - http://www.electronics123.net/amazon/datasheet/MSI-techman.pdf
