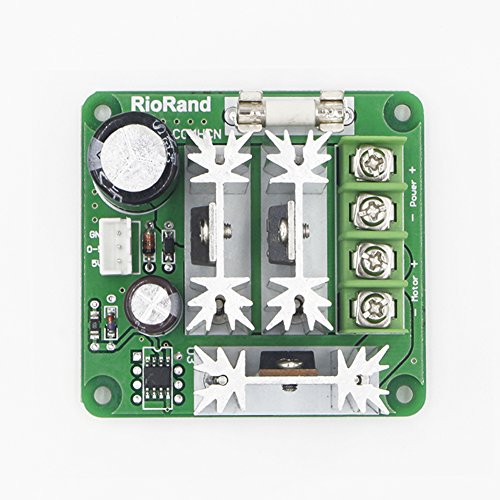

RioRandâ„?Upgraded 6V-90V 15A DC Motor Pump Speed Controller

Save 8%
$11.99
$10.99
SKU B00F839VNQ

Brand: RioRand

Color: Green

Features:

  • RioRand Upgraded 6V-90V 15A DC Motor Pump Speed Controller
  • Control the speed of a DC motor with this controller
  • High efficiency, high torque, low heat generating
  • With reverse polarity protection, high current protection
  • Rated current:8A;Maximum current:15A

Binding: Electronics

model number: RR-6-90V-15A-PSC

Part Number: RR-6-90V-15A-PSC

Details: Specifications:
Working Voltage: DC 6V - DC 90V (Ultra wide working voltage)
Control Power: 0.01 - 1000W(Max current :15A)
Static Current: 0.005A ( Standby)
PWM Duty Cycle: 0% -100%
PWM Frequency: 15Khz
Voltage control:0-5v(Voltage -mode control ,can use PLC to control the motor speed directly)
With power reverse connection protection, has complete protection from overvoltage, 20A to quickly fuse the ceramic fuse ,can use PLC voltage to control directly.
Package Including:
1 x RioRand Speed Control

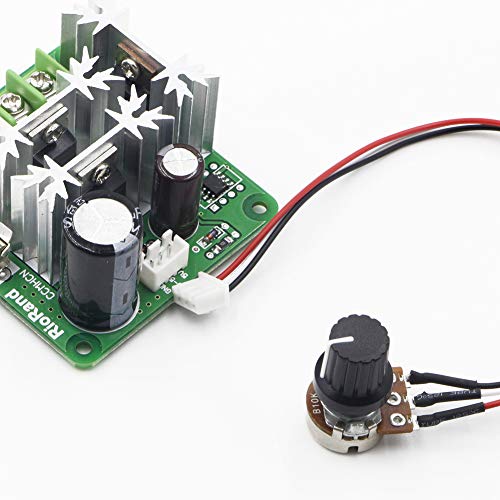

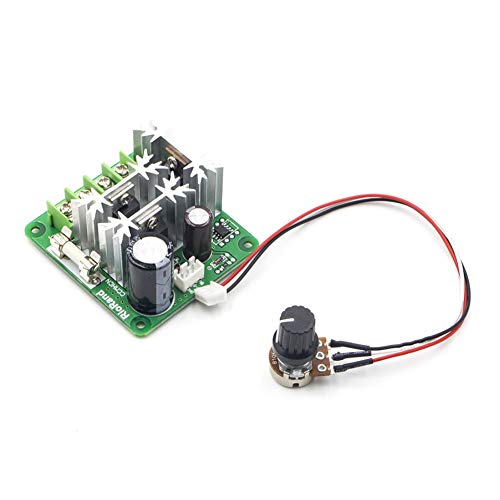

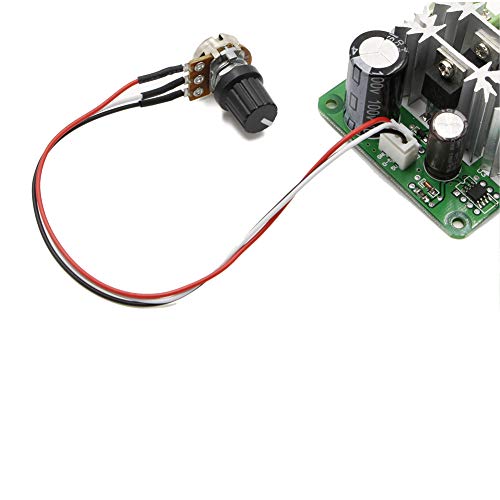

1x RioRand Speed Control Switch
Notice:If the item you received differs from the picture or if there is any issue with your purchase, please just contact us via sending us an email so we can solve the issue in time

EAN: 0619636101304

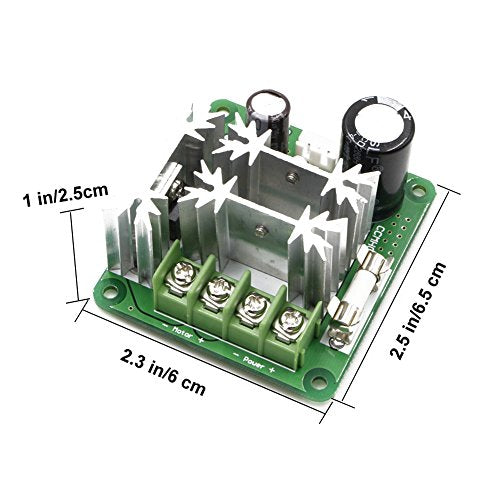

Package Dimensions: 4.6 x 3.1 x 1.8 inches
